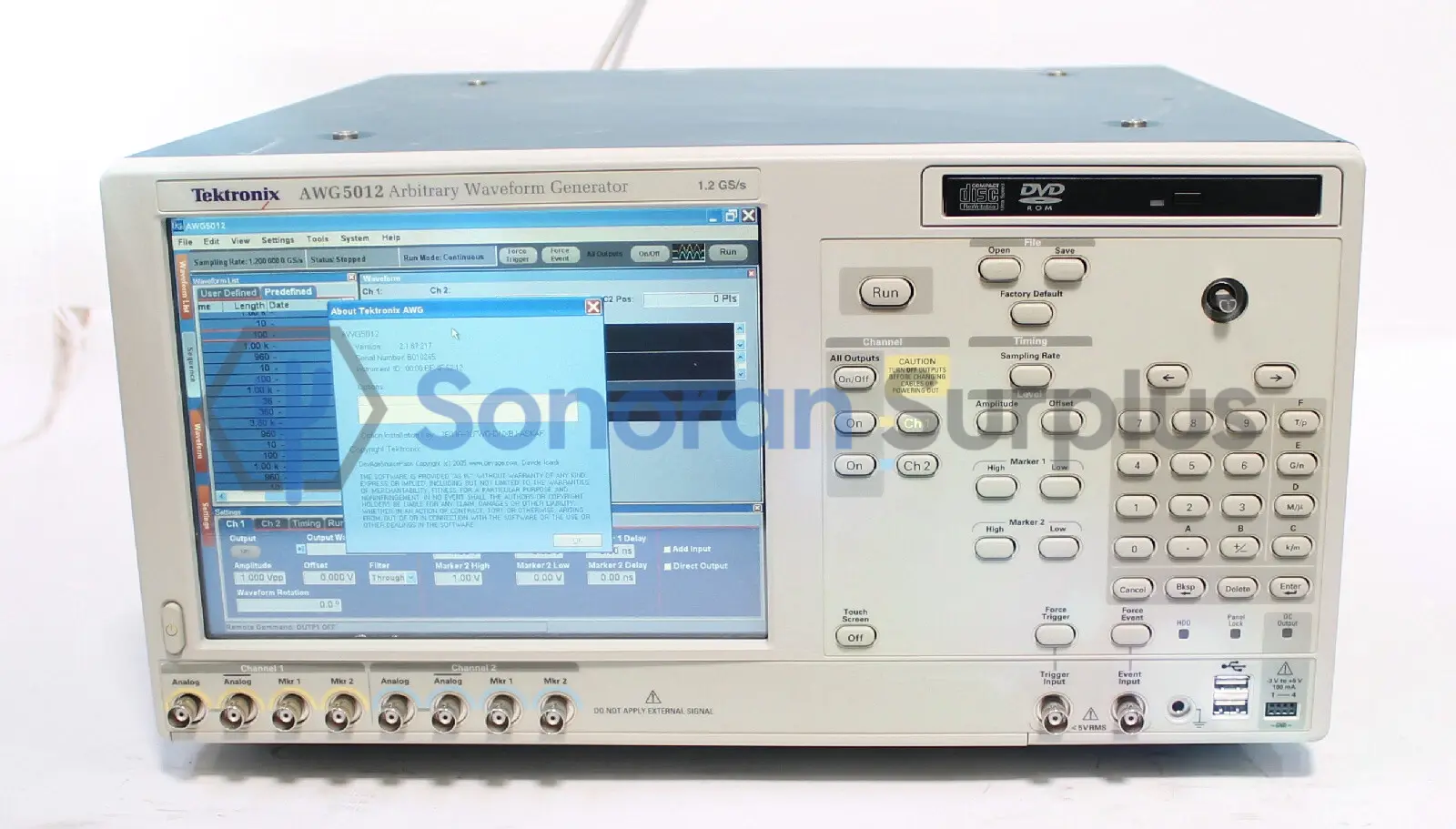

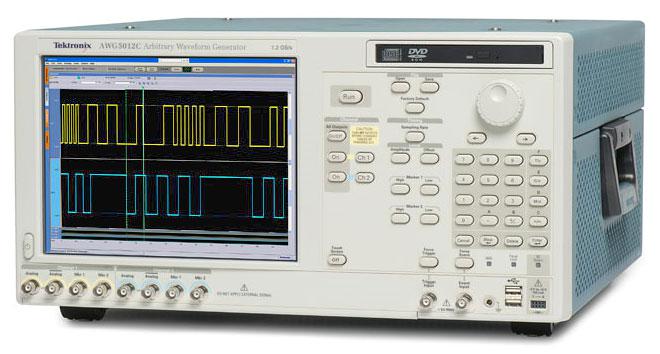

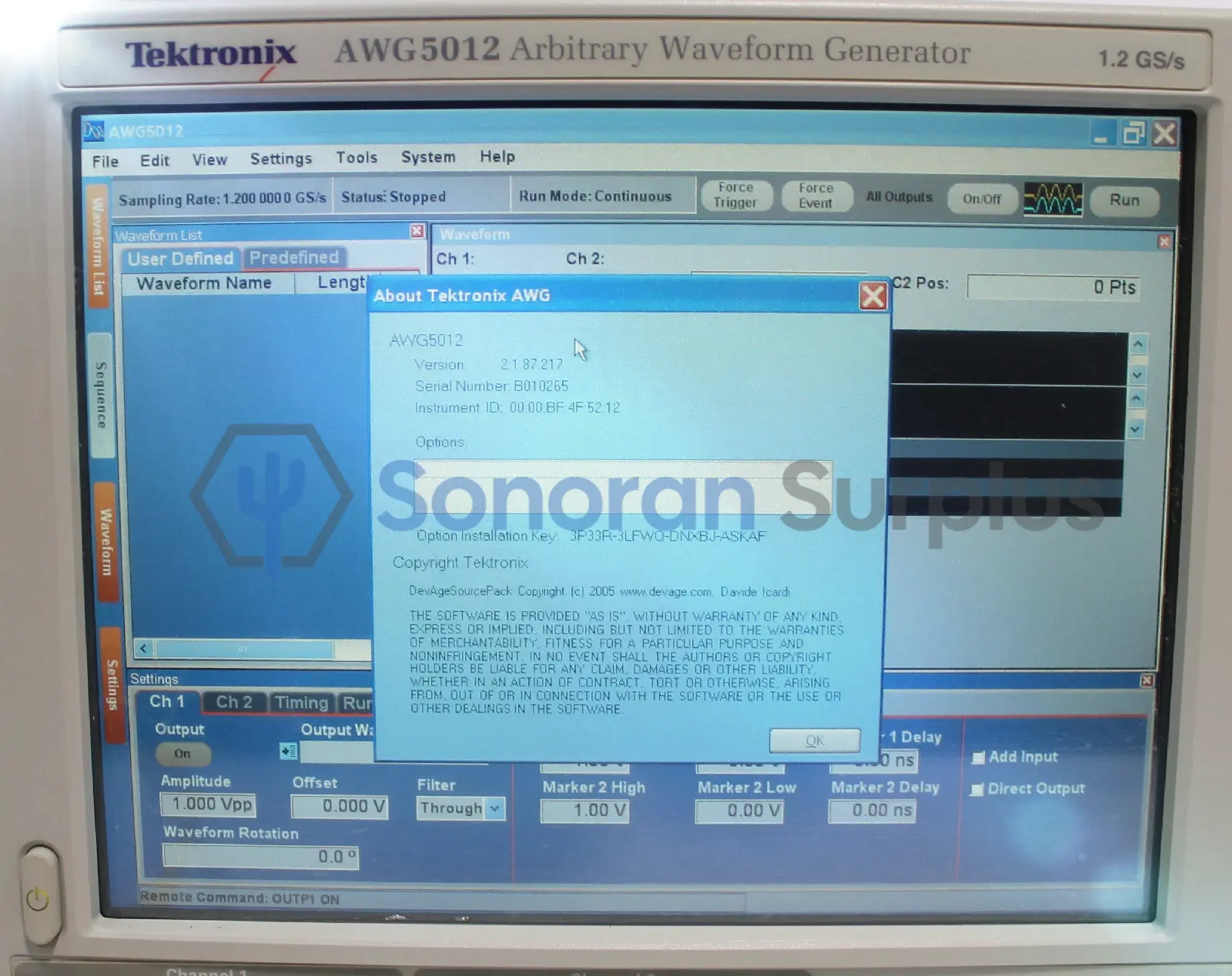

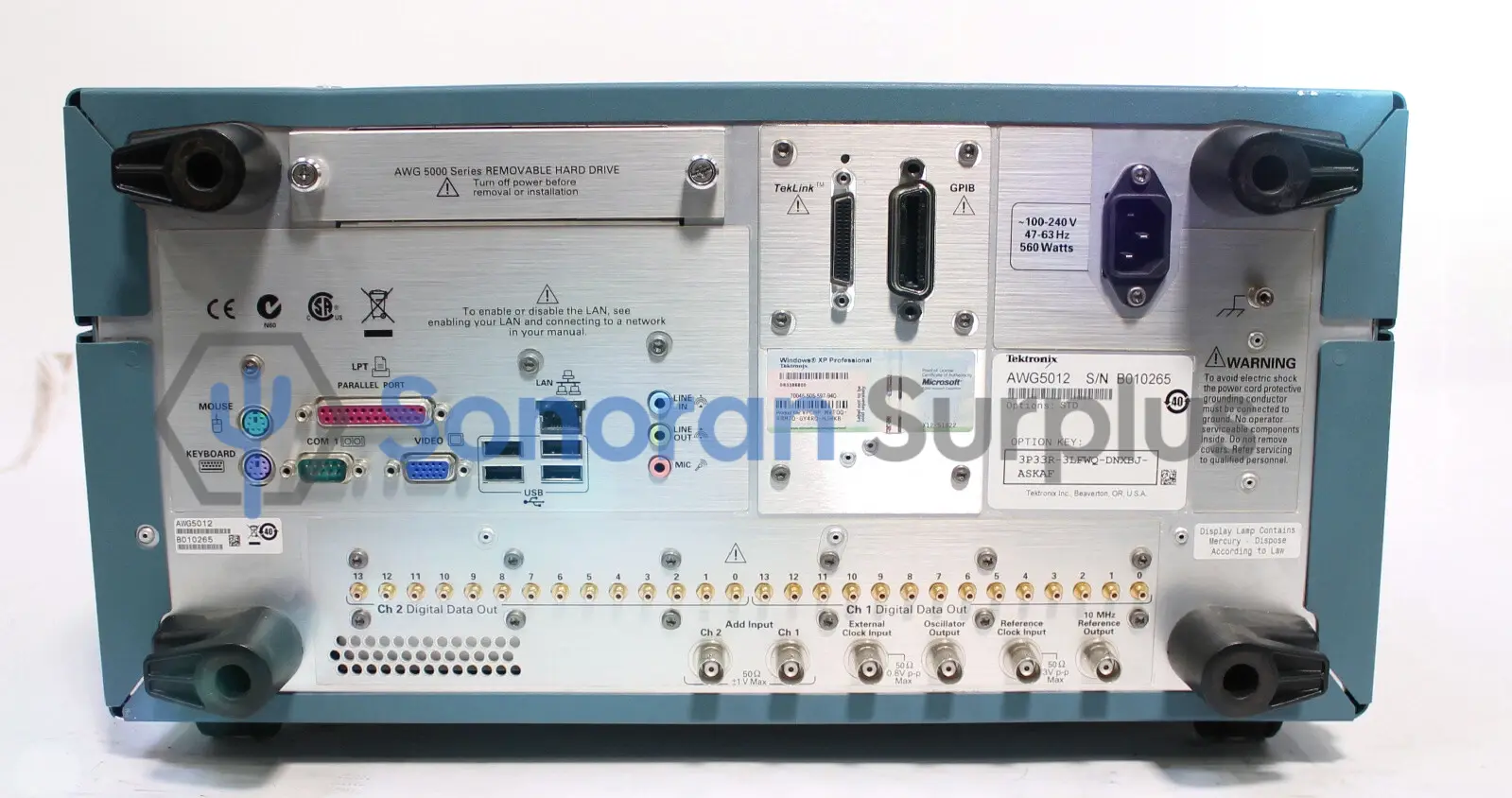

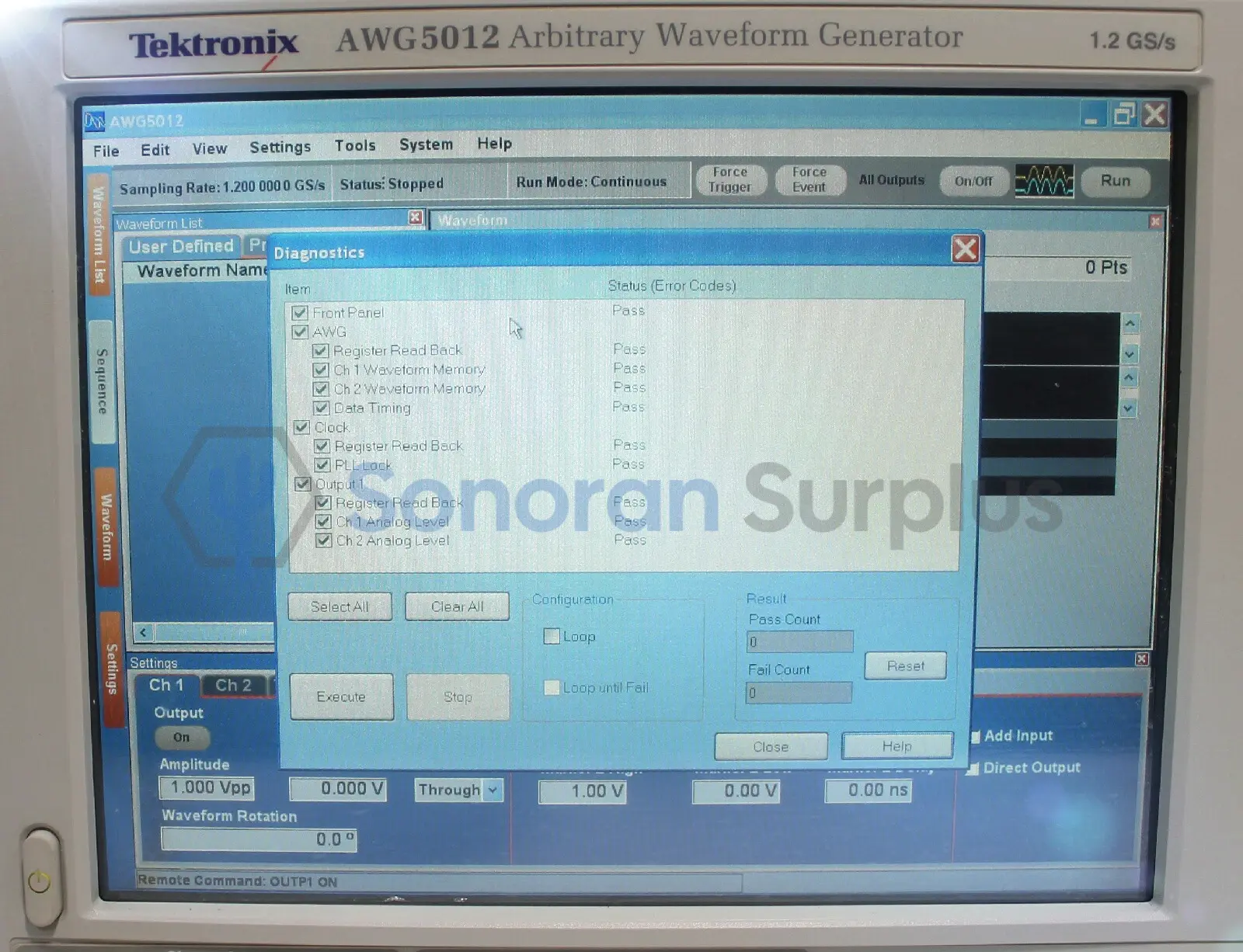

Tektronix AWG5012 1.2 GS/s Arbitrary Waveform Generator

The Tektronix AWG5000 Series of arbitrary waveform generators offers the industry’s best solution for the challenging signal-stimulus issues faced by designers who need to verify, characterize, and debug sophisticated electronic designs. With an excellent dynamic range across all modulation bandwidths, the Tektronix AWG5000 Series models provide a 14-bit DAC, sample rates up to 1.2 GS/s, 2 to 4 output channels, synchronized 4 to 8 digital marker outputs, and 28 channels of digital data outputs.

These instruments easily solve the toughest measurement challenges in wireless communications, defense electronics, digital consumer product design, data conversion equipment, test system synchronization, and semiconductor design and test. The open windows (Windows 7) based instruments are easy, convenient to use, and connect with peripherals and other third-party software.

The AWG5000 Series of Arbitrary Waveform Generators delivers the optimal combination of industry-leading sample rate, vertical resolution, signal fidelity, and waveform memory length, all in an easy-to-use self-contained package.

The series offers the industry’s best solution to the challenging signal stimulus issues faced by designers verifying, characterizing and debugging sophisticated electronic designs.

Meeting the needs of today’s design engineers, the series provides excellent signal dynamic range and integrity.

AWG5000 Series models, with a 14 bits DA converter based sample rate from 600 MS/s to 1.2 GS/s, two to four output channels, synchronized four to eight digital marker outputs, and 28-channels of digital data outputs, easily solve the toughest measurement challenges in wireless base band I/Q communications, digital consumer product design such as imaging devices, data conversion equipment and semiconductor design and test.

The open Windows (Windows XP)-based instruments are easy and convenient to use and connect easily with peripherals and third-party software.

Features:

• 1.2 GS/s, 4-channel, 14 bits, 16 M point/channel
• Up to 4.5 Vp-p Single-ended and 9 Vp-p at Differential Output into 50 O
• 0.95 ns Tr/Tf (10 to 90%) at 0.6 Vp-p
• ±5 ns Range (50 ps Resolution) Inter Channel Skew Control
• SFDR: 80 dBc (1 MHz), 64 dBc (10 MHz)
• 4 Variable Level Marker Outputs
• Up to 3.7 Vp-p Single-ended Output into 50 O
• 300 ps Tr/Tf (20 to 80%) at 0 to 1 V
• Up to 1 ns Range (50 ps Resolution) Delay Control
• 28 Bits Ch 1/Ch 2 Variable Level Digital Data Output
• Up to 3.7 Vp-pSingle-ended Output into 50 O
• 300 ps Tr/Tf (20 to 80%) at 0 to 1 V
• Up to 32 M Point Record Length For Longer Data Streams
• Down to 800 ps Resolution Edge Timing Shift Control
• Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
• Easy to Use and Learn Shortens Test Time
• Intuitive User Interface Based on Windows 2000 XP
• Convenient Bench Top Form Factor
• Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN and USB ports

Key Features Tektronix AWG5012:

• Manufacturer(s): -Tektronix
• Instrument Model: -AWG5012C
• Description: -Signal Generator
• Instrument Type(s): -Signal Generator
• Application Area(s): -Test and Measurement

Option

• 01 Waveform Length Expansion (from 16 M to 32 M)
• 03 28 bits digital data outputs (digital data of ch 1 and ch 2)
• M12 Waveform length expansion from 16 M point to 32 M point
• D13 Digital data outputs
