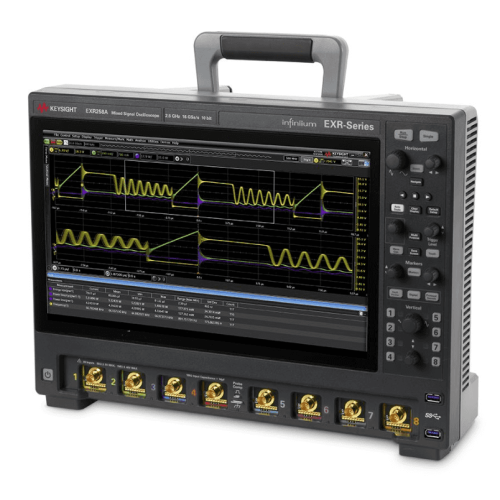

Keysight EXR258A EXR Series, 2.5GHz Bench Oscilloscope, 8 Analogue Channels

Introducing the Keysight EXR258A The best choice for precise measurement and analysis is available. This tool works well in RF, microwave, and high-speed digital applications. Engineered with advanced technology and built for reliability, the EXR258A elevates your testing environment with superior performance, robust design, and user-friendly operation.

Digital Oscilloscope (2.5 GHz / 8 Channels)

The Infiniium EXR-Series offers great signal quality and features. It uses Keysight’s top technology from the UXR-Series scope. It also combines the speed and integration of InfiniiVision scopes. This makes the Infiniium EXR-Series the industry’s best scope from 500 MHz to 2.5 GHz.

The Infiniium EXR-Series provides up to 2.5 GHz bandwidth. It also has a sample rate of 16 GSa/s on each of its four or eight channels. With 100 Mpts of standard memory for each channel, the Infiniium EXR-Series offers flexible three-stage triggering.

It includes over 50 standard measurements and an extensive library of specific application packages. Plus, it has ASIC-accelerated testing. This means you can see more of your signal than ever before.

Unmatched Performance and Precision

• High Dynamic Range & Wide Frequency Coverage:
• Experience exceptional signal clarity and measurement accuracy. The EXR258A offers great dynamic range performance across a wide frequency range. This ensures it captures every detail accurately.
• Advanced Signal Analysis:
• Leverage state-of-the-art analytical capabilities to obtain real-time, high-resolution data. Whether you’re testing communication systems, radar applications, or high-speed digital circuits, this instrument provides the comprehensive insights you need.

Designed for Versatility and Efficiency

• Intuitive Interface and Seamless Connectivity:
• Simplify your workflow with an easy-to-use interface, allowing rapid setup and operation. Integrated connectivity options—USB, LAN, and GPIB—ensure effortless integration into your existing test systems.
• Robust and Reliable Construction:
• Built to perform in demanding environments, the Keysight EXR258A combines rugged construction with precision engineering. Count on consistent, repeatable results even under challenging conditions.
• Enhanced Productivity:
• Streamline your measurement processes with quick configuration and automated features that minimize downtime and maximize testing throughput.

Ease of ownership

Your Infiniium EXR-Series is more than just an oscilloscope – it’s 7 instruments in 1.

• Up to 8 high-speed analog oscilloscope channels
• 10-digit counter (standard)
• 4-digit voltmeter (standard)
• 16 digital channels (option)
• 50 MHz arbitrary waveform generator (option)
• 50 MHz frequency response analyzer (option)
• Protocol analyzer (option)

Integrating all these tools into your oscilloscope has many benefits besides the obvious space and budget simplifications. One user interface means a lower learning curve when using one of the integrated tools. It also means fewer pieces of instrumentation to store, calibrate, and keep updated on firmware.

The counter and DVM are standard features. They are special because they use a different signal path.

This path is not the same as the captured waveform used for measurements. This makes them much more accurate, flexible, and user-friendly than standard on-screen measurements.

Just connect a probe or cable to an unused channel. You don’t need to scale, trigger, or set up the signal on the screen. This allows you to make basic frequency and voltage measurements easily!

You can purchase the logic analysis, AWG, and FRA at any time for permanent installation to your EXR-Series. You can buy different types of protocols analyzed for various lengths of time. This allows you to fit your budget and project needs, either temporarily or permanently.

Configure Complex Measurements Simply with Setup Wizards

Today’s oscilloscopes, especially in this class, are complex tools with hundreds of functions and features available. Keysight has worked hard to make these tools easy for you to access. They are in clear locations and can be used repeatedly. They complete this without reducing the power or range of the analytical process.

Quick Setups help you perform common measurements. They also allow you to trigger and decode serial buses.

You can create eye diagrams and analyze jitter. Additionally, they assist in finding faults. The scope will do most or all of the work with one click.

For more complex tests, there are Setup Wizards. These step-by-step dialog boxes help you improve your analysis. They explain different features and settings in more detail. These are available for power analysis, power integrity, Real-Time Eye diagrams, jitter decomposition, measurement analysis (trends, histograms, etc), crosstalk, and more.

Identify Errors in One Click using Fault Hunter

Fault Hunter is a new expert system for checking digital systems. You can run it with just one button on the front panel of your EXR-Series oscilloscope. It automatically evaluates your signal’s characteristics against user-definable criteria, quickly finding and saving errors for your review.

Flexible, you can define the test duration from 60 seconds up to 48 hours. Set up your device on a Friday afternoon. Come back on Monday morning with a full test report.

You will have billions of tests completed. This is possible because of our fast triggering speeds, over 200,000 wfm/s.

What’s Included:

• One N2873A 500-MHz passive probe per channel
• Probe accessory pouch
• Localized power cord
• Front panel hard cover
• BNC calibration cable
• Keyboard and mouse
• Keysight I/O libraries suite, user guide and programmer’s guide ship on oscilloscope drive
• 1 year factory calibration certificate

Why Choose the Keysight EXR258A?

The Keysight EXR258A is not just another measurement tool. A complete device made for the changing needs of engineers and researchers exists. Keysight has a strong history of innovation and quality. This instrument helps you feel confident while exploring new technology and improving project performance.

Elevate your testing capabilities with the Keysight EXR258A—where precision, performance, and reliability converge to drive innovation. Upgrade your measurement system today and experience the Keysight difference in every measurement.
