Keysight B2912A is an Innovative SMU Provides Superior Performance and Rapid Measurement Results
Keysight B2912A Precision Source / Measure Unit (SMU) is a 2-channel, compact and cost-effective bench-top SMU with the capability to source and measure both voltage and current. It is versatile to perform I/V (current vs. voltage) measurement easily with high accuracy. The integration of 4 quadrant source and measurement capabilities enables I/V measurement simply and easily without configuring multiple instruments.

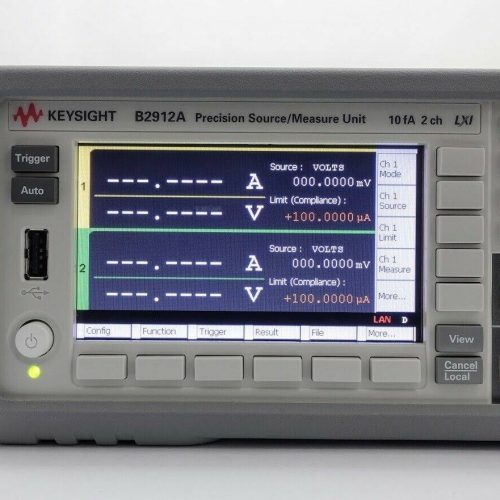

The wide coverage of 210 V, 3 A DC/10.5 A pulse with a single instrument minimizes the investment. Minimum 10 fA/100 nV measurement resolution supports the accurate characterization of DUT. The superior 4.3’’ color display and various view modes improve productivity for test, debug and characterization with intuitive operation.
The Keysight B2900A Series offers unmatched measurement throughput and supports conventional SMU SCPI commands for easy test code migration. These features improve efficiency and lower the cost of ownership when integrating the SMUs into systems for production test. The
Keysight B2900A Series consists of four models, the B2901A, B2902A, B2911A, and B2912A, differentiated through their available features (number of digits displayed, measurement resolution, minimum timing interval, supported viewing modes, etc.) and by the number of SMU channels (one or two) they contain. This makes it easy to select the exact price/performance point you require to meet your testing needs.
Configure Your Keysight B2900A Series Precision Source/Measure Unit
The Keysight B2900A Series Source/Measure Unit (SMU) series contains the following four models.
- B2901A Precision Source/Measure Unit, 1ch, 100fA resolution, 210V, 3A DC/10.5A pulse
- B2902A Precision Source/Measure Unit, 2ch, 100fA resolution, 210V, 3A DC/10.5A pulse
- B2911A Precision Source/Measure Unit, 1ch, 10fA resolution, 210V, 3A DC/10.5A pulse
- B2912A Precision Source/Measure Unit, 2ch, 10fA resolution, 210V, 3A DC/10.5A pulse
- B2901A & B2902A
- 1 μV / 1 pA Sourcing resolution (5-1/2 digits)
- 100 nV / 100 fA Measurement resolution (5-1/2 digits)
- B2911A & B2912A
- 100 nV / 10 fA Sourcing resolution (6-1/2 digits)
- 100 nV / 10 fA Measurement resolution (6-1/2 digits)
- Wide coverage up to 210 V, 3 A DC/10.5 A pulse
- Color 4.3” front panel displays both graphical and numerical view modes
- High-resolution arbitrary waveform generation (AWG) and list sweep functions (10 μs minimum interval)
- High speed digitizing capability (maximum 100000 points/s sample rate)
- Free application software to facilitate PC -based instrument control
- GPIB, USB, LAN (LXI-C)
Switch Easily Between a Current Source, a Voltage Source, a Current Meter and a Voltage Meter
The Keysight B2900A Series of Precision Source/Measure Units are compact and cost-effective bench-top Source/Measure Units (SMUs). They have the capability to output (source) and measure both voltage and current — making these instruments ideal for a wide variety of IV (current versus voltage) measurement tasks that require both high resolution and accuracy.
Ideal for Testing Semiconductors and Active/Passive Components
The B2900 series has a broad application range that spans from R&D and education uses to industrial development, test, and manufacturing. Moreover, they work equally well as either standalone or system components.
Keysight B2912A Includes Power cable, USB cable, Quick Reference (English), Product Reference CD-ROM (including PDF manuals, Keysight B2900A Quick I/V, Measurement Software and drivers), Keysight I/O Library Suite, EasyEXPERT group+ Software.
