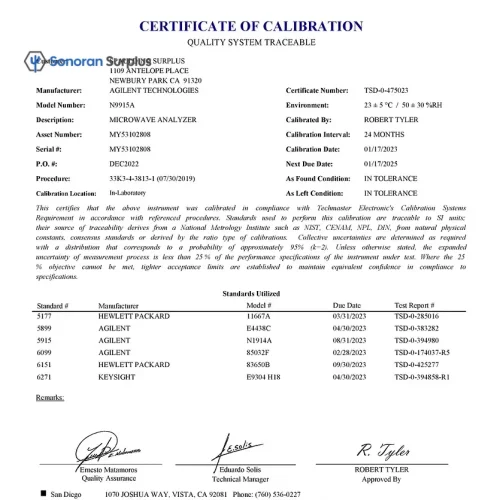

Agilent Keysight N9915A FieldFox 9 GHz Microwave Analyzer – Calibrated

The FieldFox combo analyzer N9915A is mainly a cable and antenna analyzer. You can set it up with different tools. These include a spectrum analyzer, a real-time spectrum analyzer, and a full 2-port network analyzer.

To save space in a field kit, you can add built-in features. This allows for up to 10 instruments in 1. They can handle routine maintenance, detailed troubleshooting, and everything in between. Better yet, FieldFox delivers precise microwave and millimeter-wave measurements – wherever you need to go.

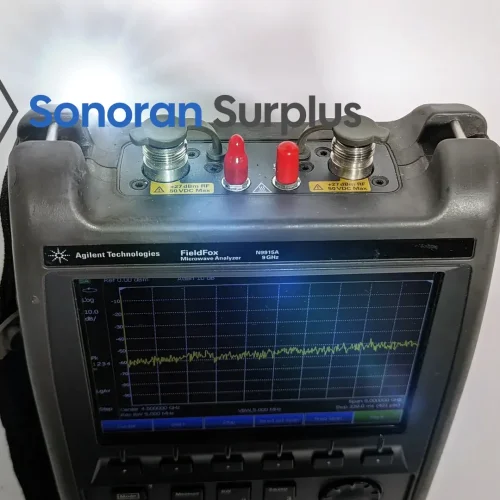

KEYSIGHT N9915A is a handheld, lightweight, durable, cable and antenna analyzer, spectrum analyzer and network analyzer. It has 2 built-in ports.

The maximum frequency is 9 GHz (X band). The output power can reach up to 1 dBm. The trace noise is 0.004 dB rms.

KEYSIGHT N9915A Features:

• – Standard model includes cable and antenna analyzer.
• – Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more.
• – Save time by measuring DTF and TDR in the same sweep.
• – Measure all four S-parameters simultaneously.
• – Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up.
• – Calibrate easily with QuickCal.
• – Use the industry’s lightest all-in-one analyzer at only 3.0 kg (6.6 lb).

FIELDFOX HANDHELD SOFTWARE

Make your FieldFox handheld analyzer more capable with convenient software upgrades — engineered to deliver precise measurements in the field.

• – Carry one portable instrument that handles routine maintenance and in-depth troubleshooting
• – Configure as a VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more
• – Order software pre-installed or upgrade an existing instrument

PATHWAVE VECTOR SIGNAL ANALYZING (89600 VSA) SOFTWARE

• – Record signals in the field and evaluate them later using 89600 VSA
• – Demodulate and perform comprehensive vector signal analyzing to optimize your deployment.
• – Decode and verify MAC, RLC and RRC-layer messages across multiple radio frames
• – Analyze and troubleshoot signals in cellular, wireless-connectivity, aerospace, defense, and general-purpose applications

To improve spectrum analyzing, the Keysight N9915A FieldFox has the same PowerSuite measurements found in Keysight signal analyzers. This allows for quick and accurate one-button testing of channelized communication systems. The InstAlign capability lets you instantly make accurate power measurements in the field, even when temperature fluctuates. With FieldFox, you can measure both the 1-port cable loss and 2-port insertion loss.

The N9915A FieldFox has a built-in calibration feature. This lets you calibrate the network analyzer without taking a cal kit into the field. When you use any test instrument, adding devices like jumper cables or adapters to the test port requires recalibration. You should use a calibration kit for this.

Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA, optional)

• 30 kHz to 9 GHz
• Dynamic range: 100 dB

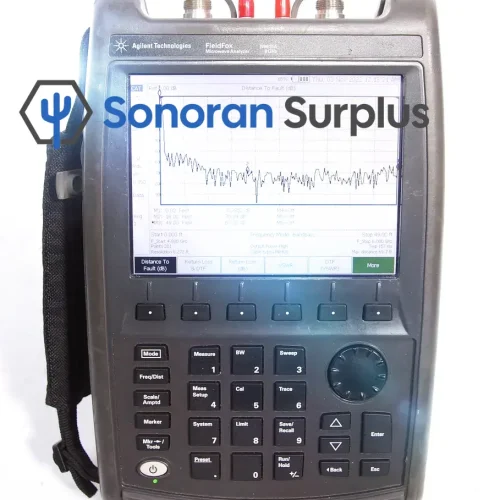

• CAT: Distance-to-fault, return loss, cable loss
• VNA (optional): S11, S21, S22, S12, magnitude and phase

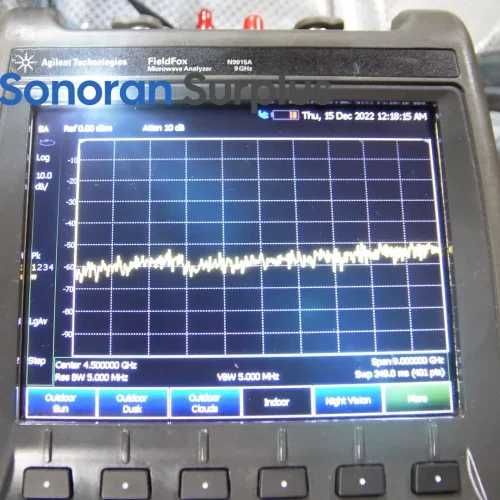

Spectrum Analyzer (optional)

• 5 kHz to 9 GHz
• ± 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55°C (14 to 131°F)
• Spur-free dynamic range: ≥ 105 dB
• Full-band tracking generator

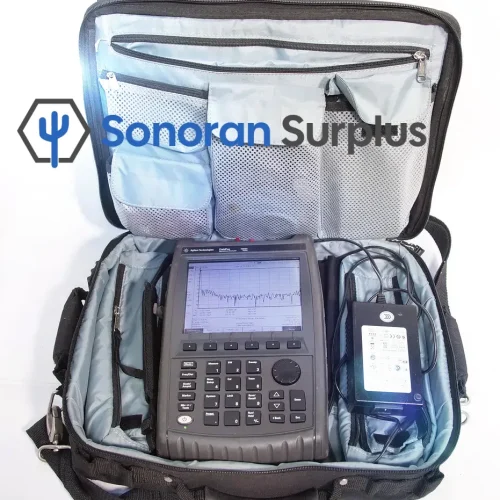

What’s included:

• 1x AC/DC adapter
• 1x Localized power cord
• 1x Rechargeable Li-ion battery
• 1x LAN cable
• 1x Soft carrying case with backpack and shoulder strap
• 1x Quick Reference Guide

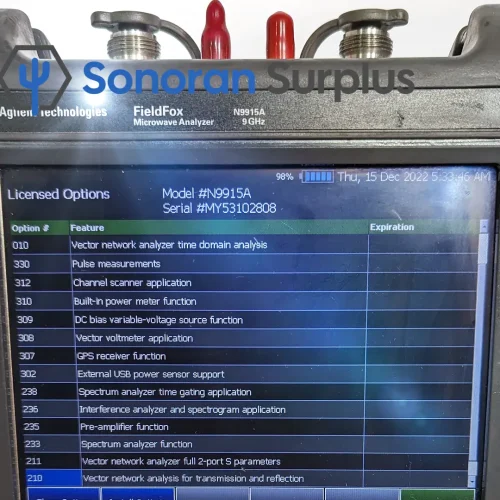

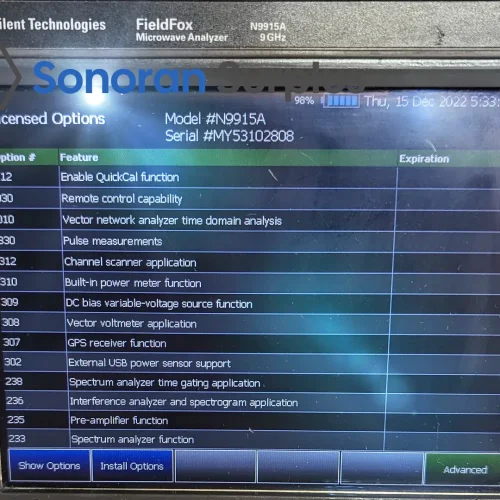

Installed Options:

• N9915A Base Combination Analyzer
• 010 – Vector Network Analyzer Time Domain
• 030 – Remote Control Capability
• 112 – QuickCal
• 210 – Vector Network Analyzer Transmission/Reflection
• 211 – Vector Network Analyzer Full 2-port S-parameters
• 233 – Spectrum Analyzer
• 235 – Pre-Amplifier
• 236 – Interference Analyzer and Spectrogram
• 238 – Spectrum Analyzer Time Gating
• 302 – USB Power Sensor Support
• 307 – GPS Receiver
• 308 – Vector Voltmeter
• 309 – DC Bias Variable-Voltage Source
• 310 – Built-in Power Meter
• 312 – Channel Scanner
• 330 – Pulse Measurements

This unit is in great shape. We have fully tested it and guarantee that it works. It comes with a 30-day right of return should it not perform to your expectations.
