Keysight N9917A FieldFox Handheld Microwave Analyzer, 18 GHz

The Keysight N9917A FieldFox Combination Analyzer handles routine maintenance, deep troubleshooting, and anything in between. The Keysight N9917A (Agilent) FieldFox delivers high-quality measurements wherever you need to go. Add a FieldFox N9917A to your trouble-shooting toolkit, and carry precision with you.

Keysight’s N9917A FieldFox Handheld Microwave Analyzers can handle tough work environments. They are great for routine maintenance, deep troubleshooting, and more. Choose the Keysight FieldFox configuration that best meets your needs.

KEYSIGHT N9917A is a handheld, lightweight, durable, cable and antenna analyzer, spectrum analyzer and network analyzer. It has 2 built-in ports.

The maximum frequency is 18 GHz (Ku band). The output power can reach up to 1 dBm. The trace noise is 0.004 dB rms.

Features:

– Standard model includes cable and antenna analyzer.

– Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more.

– Save time by measuring DTF and TDR in the same sweep.

– Measure all four S-parameters simultaneously.

– Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up.

– Calibrate easily with QuickCal.

– Use the industry’s lightest all-in-one analyzer at only 3.0 kg (6.6 lb).

What’s included:

• 1x AC/DC adapter
• 1x Localized power cord
• 1x Rechargeable Li-ion battery
• 1x LAN cable
• 1x Soft carrying case with backpack and shoulder strap
• 1x Quick Reference Guide

Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA, optional)

• 30 kHz to 18 GHz
• Dynamic range: 100 dB
• CAT: Distance-to-fault, return loss, cable loss
• VNA (optional): S11, S21, S22, S12, magnitude and phase

Spectrum Analyzer (optional)

• 5 kHz to 18 GHz
• ± 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55°C (14 to 131°F)
• Spur-free dynamic range: ≥ 105 dB
• Full-band tracking generator

FIELDFOX HANDHELD SOFTWARE

Make your FieldFox handheld analyzer more capable with convenient software upgrades — engineered to deliver precise measurements in the field.

– Carry one portable instrument that handles routine maintenance and in-depth troubleshooting.

– Configure as a VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more.

– Order software pre-installed or upgrade an existing instrument.

PATHWAVE VECTOR SIGNAL ANALYSIS (89600 VSA) SOFTWARE

– Record signals in the field and evaluate them later using 89600 VSA.

– Demodulate and perform comprehensive vector signal analysis to optimize your deployment.

– Decode and verify MAC, RLC and RRC-layer messages across multiple radio frames.

– Analyze and troubleshoot signals in cellular, wireless-connectivity, aerospace, defense, and general-purpose applications.

Designed to Withstand Your Toughest Working Conditions

The N9917A FieldFox 18 GHz RF Combination Analyzer mainly works as a cable and antenna analyzer. It can also be set up to include a spectrum and network analyzer. You can order FieldFox with additional capabilities: power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, and built-in GPS receiver.

Independent source, vector voltmeter (VVM), power sensor and built-in measurements

• RF source: 30 kHz to 18 GHz, CW, CW coupled, and tracking
• VVM: 30 kHz to 14 GHz, compare phase and electrical length
• Power measurements with USB sensor: 9 kHz to 24 GHz (sensor dependent)
• Built-in power meter: 100 kHz to 18 GHz

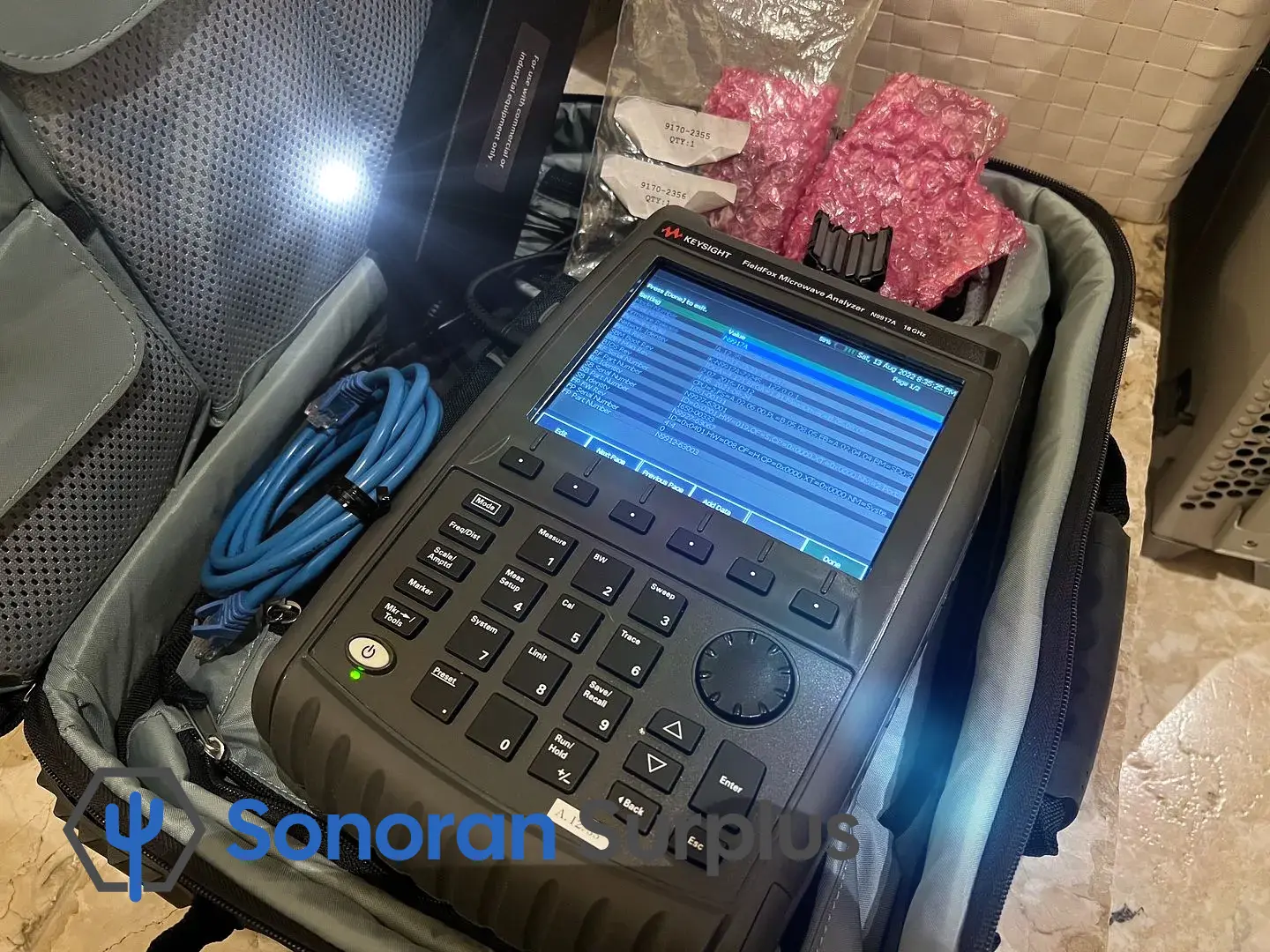

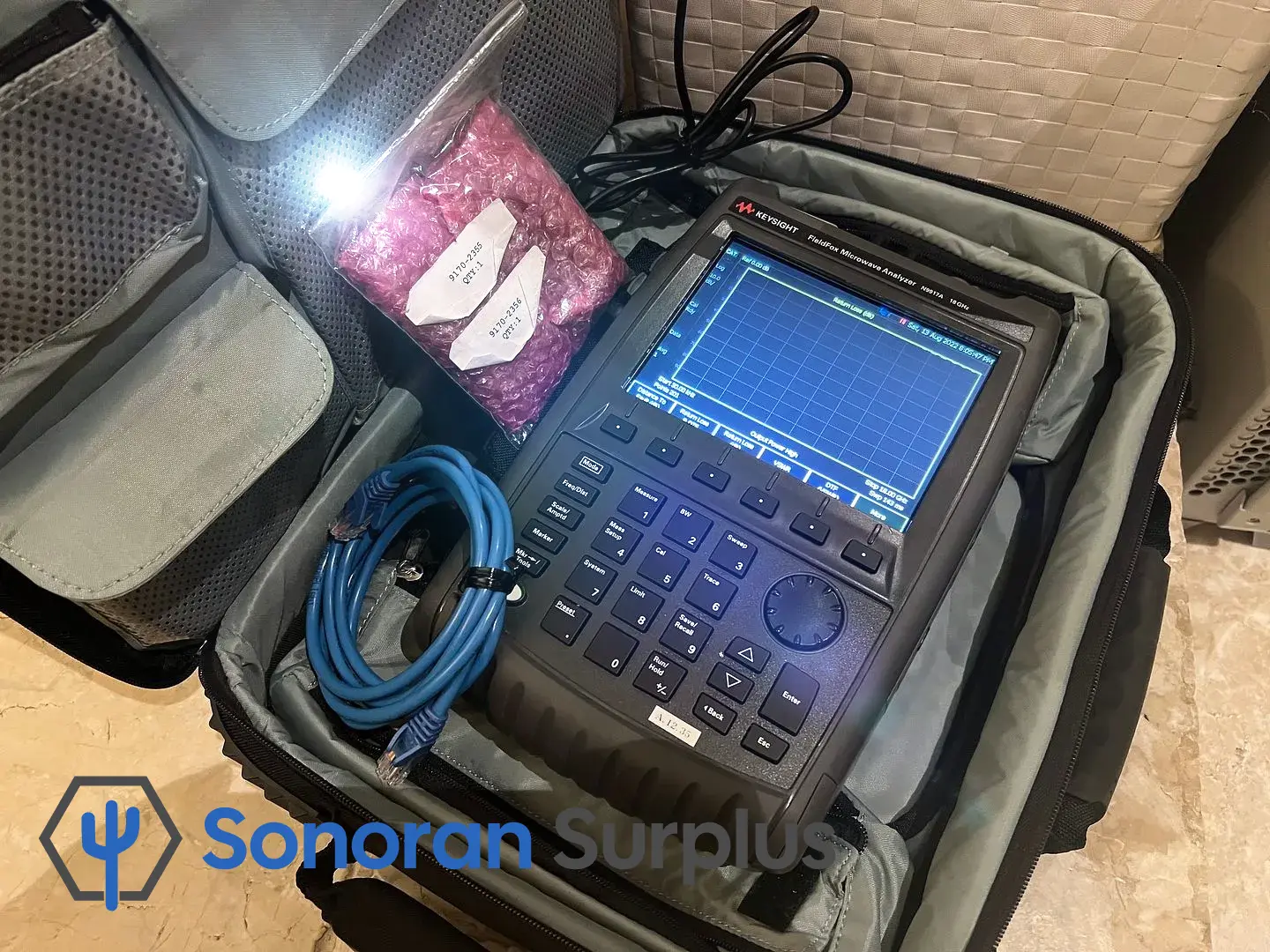

Keysight N9917A FieldFox 18 GHz RF Cable Antenna Combination Analyzer with Options 112 (QuickCal), 215 (TDR Cable Measurements), 233 (Spectrum Analyzer), 235 (PreAmplifier) and 302 (USB Power Sensor Support).  This unit comes with the accessories shown in the auction pictures.  It will also arrive with a fresh calibration performed by an ISO 17025 accredited lab.

This unit remains in excellent condition, the team has fully tested it, and we guarantee its functionality. It comes with a 30 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description.
