Agilent Keysight N9961A FieldFox Handheld Microwave Analyzer, 44 GHz
Original price was: $19,999.00.$9,999.00Current price is: $9,999.00.
The Agilent Keysight N9961A FieldFox is a rugged, portable RF and microwave analyzer built for field professionals. This handheld unit offers spectrum analysis, network analysis, and signal troubleshooting. It provides precise testing up to 44 GHz. Ideal for telecom, aerospace, and defense engineers who need reliable performance on the go.
In stock
KEYSIGHT N9961A is a handheld, lightweight, durable, microwave spectrum analyzer, interference analyzer, distance-tracking generator, preamplifier, and power meter. It provides two built-in ports with a maximum frequency of 44 GHz (Q band) and output power up to 4 dBm.
Engineers optimized the Keysight N9961A spectrum analyzer to excel in a dynamic spectral environment. You may encounter measurement challenges. For example, you might need to detect a weak signal in strong conditions.
This requires a high dynamic range. You may also need to identify small interference signals that are close together. This requires excellent phase noise performance.
The high dynamic range (TOI > +15 dBm) is impressive. The low phase noise (-111 dBc/Hz at 10 kHz offset) is also beneficial. Additionally, the fast sweep time helps make these tasks easier. The Keysight N9961A spectrum analyzer also provides a full power measurement suite and complete trace and state control.
KEYSIGHT N9961A Features:
- – Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
- – Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
- – Characterize radar pulse profiles with a portable solution.
- – Perform over-the-air measurements for 5G TF and LTE.
- – Capture I/Q data for RF signal monitoring and analysis.
- – Use GPS/GNSS for geolocation and timestamping.
- – Carry one lightweight unit at 3.2 kg (7.1 lb).
FIELDFOX HANDHELD SOFTWARE
Make your FieldFox handheld analyzer more capable with convenient software upgrades — engineered to deliver precise measurements in the field.
- – Carry one portable instrument that handles routine maintenance and in-depth troubleshooting
- – Configure as a spectrum analyzer, built-in power meter, tracking generator, and more
- – Order software pre-installed or upgrade an existing instrument
PATHWAVE VECTOR SIGNAL ANALYZING (89600 VSA) SOFTWARE
- – Record signals in the field and evaluate them later using 89600 VSA
- – Demodulate and perform comprehensive vector signal analyzing to optimize your deployment.
- – Decode and verify MAC, RLC and RRC-layer messages across multiple radio frames
- – Analyze and troubleshoot signals in cellular, wireless-connectivity, aerospace, defense, and general-purpose applications
With the Keysight N9961A FieldFox’s InstAlign capability, internal amplitude alignments occur automatically as environmental conditions change, without any user intervention. This provides unprecedented amplitude accuracy of ± 0.5 dB for analyzing the spectrum and measuring power.
The Keysight N9961A provides a spectrum analyzer IF output with 25 MHz bandwidth. This allows the use of a frequency downconverter. It can also digitize the signal with external test equipment.
You can use tools like a real-time scope or VSA for detailed signal analysis. FieldFox can connect to the 89600 VSA software (Keysight model number 89601B) via Ethernet to a Windows-based PC or tablet.

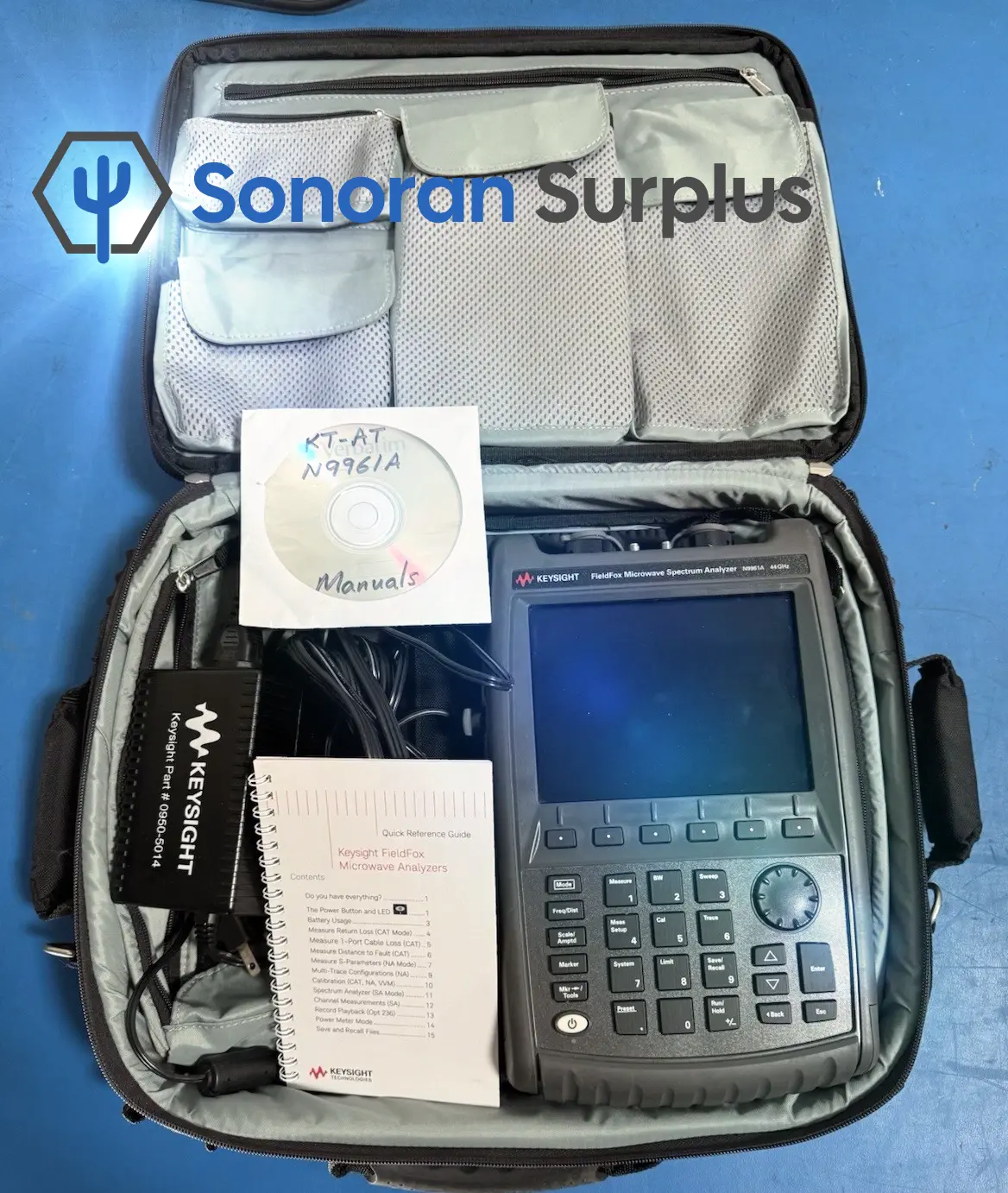

What’s included:
- 1x AC/DC adapter
- 1x Localized power cord
- 1x Rechargeable Li-ion battery
- 1x LAN cable
- 1x Soft carrying case with backpack and shoulder straps
- 1x Quick Reference Guide

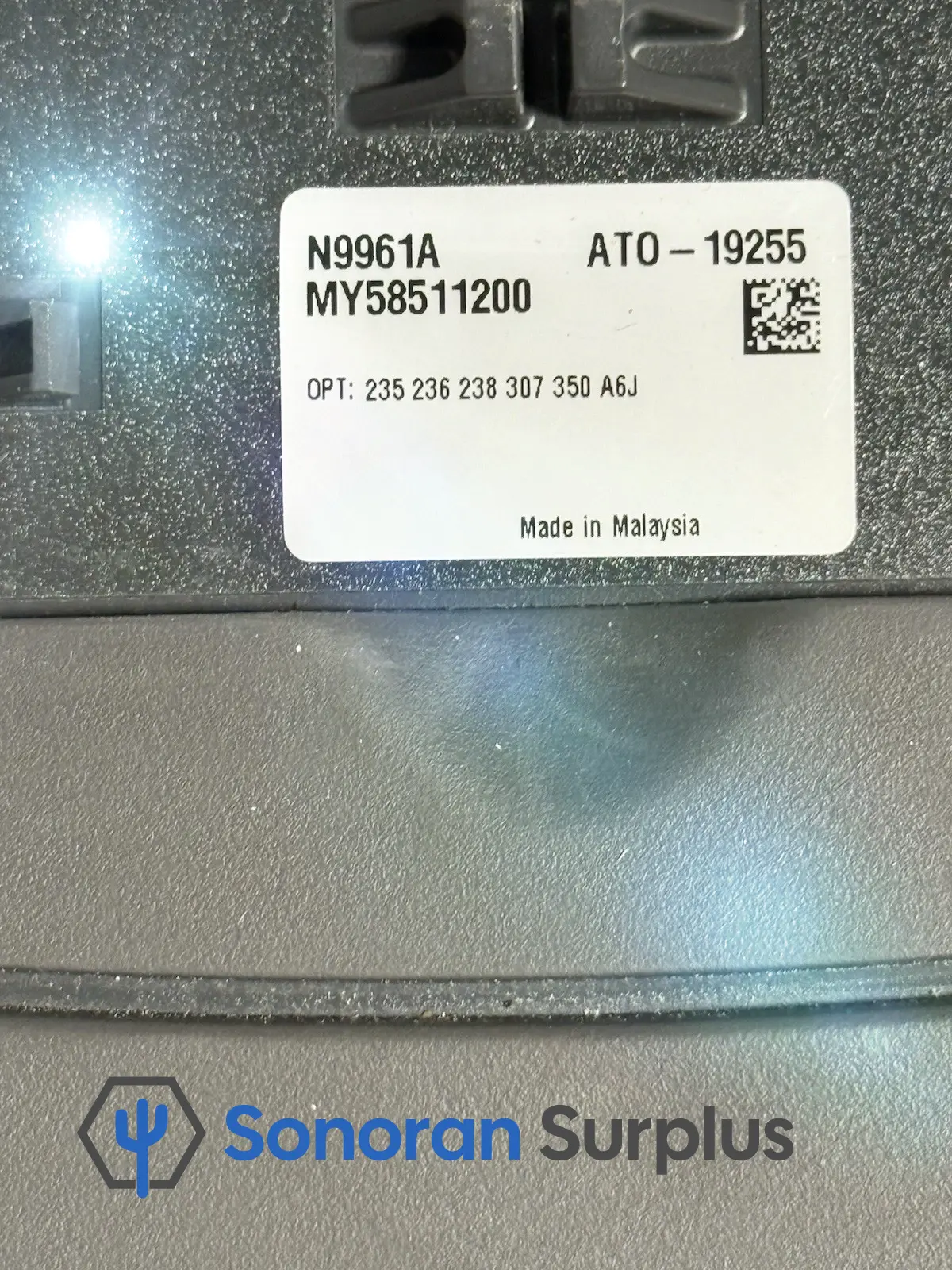

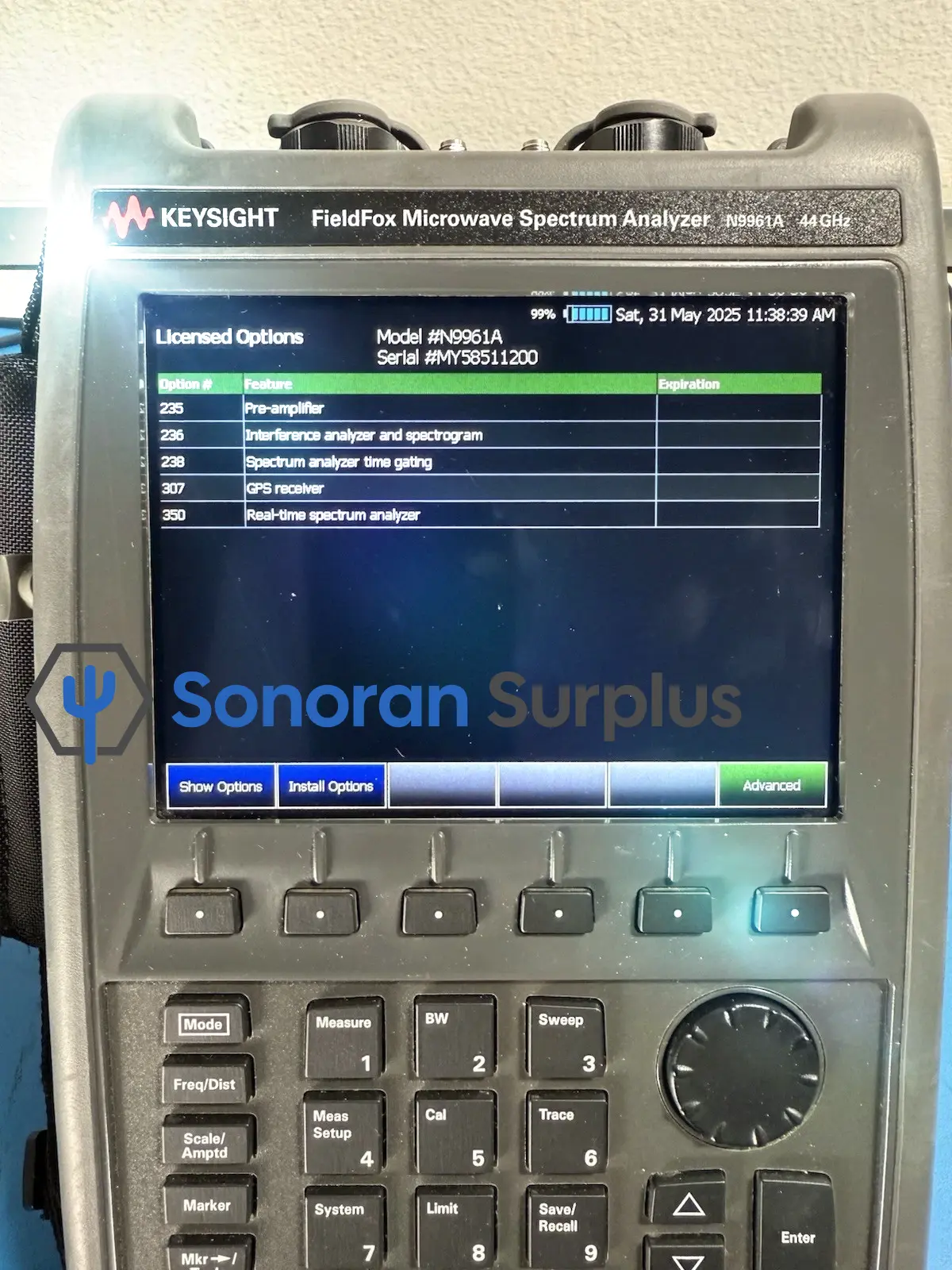

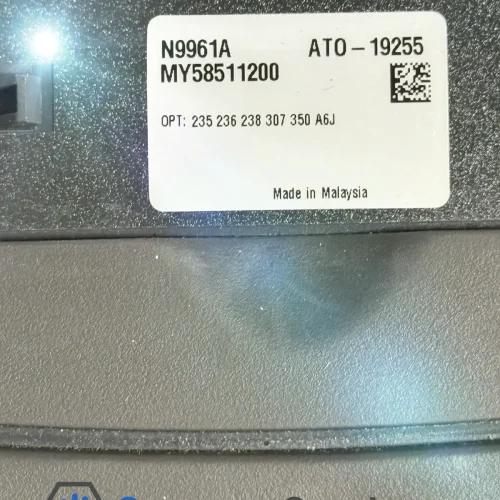

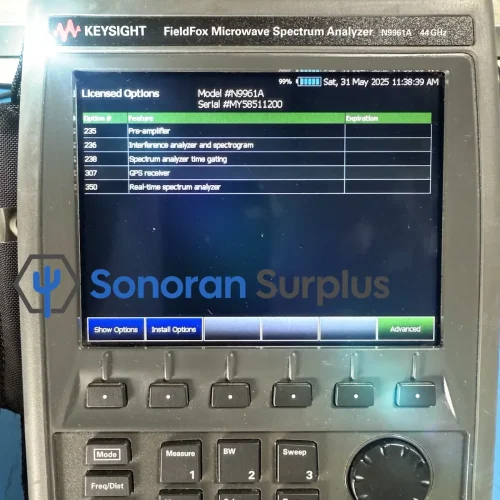

Keysight N9961A FieldFox options 235 236 238 307 350 Handheld Spectrum Analyzer 44 GHz

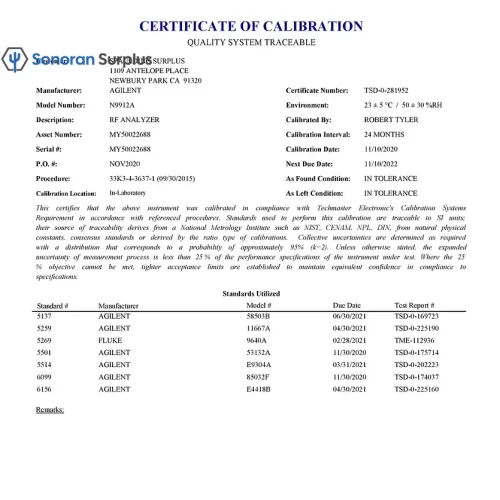

- Fully tested
- Configured with the follwing options:
Specifications:
| Bandwidth Options | 10 MHz (standard) |
|---|---|
| Number of Built In Ports | 2 ports |
| Output Power | Up to 4 dBm |
| Applications Cellular | 89600 VSA Software, Over-The-Air LTE FDD and 5GTF |
| Applications -General Purpose | AM/FM Tune and Listen, Field Strength Measurement, SCPI Code Compatibility, Spectrogram, Stimulus Response |
| Applications – Wireless Connectivity | 89600 VSA Software |
| DANL @ 1 GHz | -159 dBm |
| Maximum Analysis Bandwidth | 10 MHz |
| Maximum Real Time Bandwidth | 10 MHz |
| Phase Noise @ 1GHz (1 MHz Offset) | -113 dBc/Hz |
| Phase Noise @ 1 GHz (10 kHz Offset) | -111 dBc/Hz |
| Phase Noise @ 1 GHz (30 kHz Offset) | -108 dBc/Hz |
| Standard Attenuator Range | 30 dB |
| Standard Attenuator Step | 5 dB |
| TOI @ 1 GHz (3rd Order Intercept) | +13 dBm |
| Instrument Type | Spectrum Analyzer |
| Power Measurement Using USB Sensor | Frequency-Offset, CW or Swept-Frequency, RF Pulse Test with Peak Sensor |
| System Features | GPS Receiver – Internal Only, Remote Control Capability, Built-In DC Source |
| Additional SA Based Features | Real-Time Spectrum Analysis, Noise Figure Measurements, Over-The-Air Measurements, Built-In Power Meter, Extended Range Transmission Analysis (ERTA) |
| SA Start Frequency | 5 kHz |
| Applications – Digital Video | 89600 VSA Software |
| Key Features |
|
| Maximum Frequency | 44 GHz |
| Series | FieldFox Handheld RF and Microwave Analyzers |
| Applications | Distance-to-fault (dB), Return loss (dB), Return loss & DTF (dB), VSWR, Distance-to-fault (VSWR), Cable loss (1-port), Insertion loss (2-port) (requires option 211), Distance-to-fault (Lin), TDR (Lin rho) (requires option 215), TDR (ohm) (requires option 215), TDR & DTF (requires option 215) |
