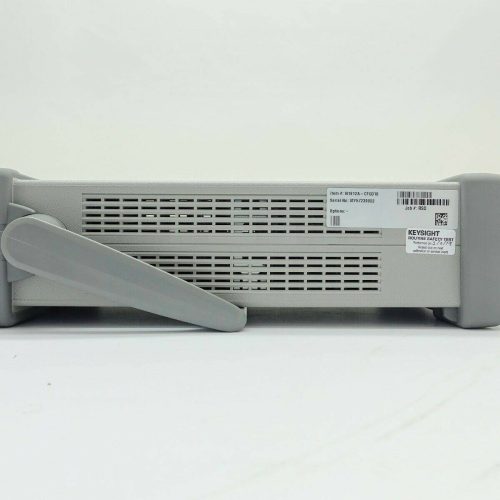

Medidor de Potência Keysight N1912A Série P, Canal Duplo

Keysight N1912A is designed for indoor use and in an area with low condensation. The table below shows the general environmental requirements for this instrument.

Keysight N1912A is a used RF Power Meter from Agilent. Radiofrequency (RF) power meters are the electronic test equipment of choice to collect information, analyze RF power, and display information in an easy-to-read digital format. Engineers use RF power meters to measure and document pulsed RF signals, noise-like signals, and pseudorandom signals.

Keysight N1912A Features:

• Frequency range: 9 kHz to 110 GHz, sensor dependent
• LXI-C Compliance
• Average triggering for average power measurement
• Versatile connectivity with USB, LAN and GPIB standard
• High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
• Compatible with the industry-standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
• Compatibility with E932x power sensors
• Difference and ratio math functions : (A-B, B-A, A/B, and B/A)
• 2-year calibration cycle
• 30 MHz video bandwidth
• Single-shot real-time capture at 100 Msample/s per second
• Key Measurements: – peak, average, peak-to-average ratio, rise time, fall time and pulse width
• 22 Predefine formats: WiMAX, DME, HSDPA, etc.
• One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
• Internal Zeroing and Calibration while connecting to the DUT

Keysight N1912A dual-channel P-Series wideband power sensors provide accurate and repeatable power measurements for R&D and manufacturing engineers, in markets including aerospace and defense (radar), wireless communications and wireless 802.11a/b/g networking.

Measurements provided by this meter/sensor combination include peak power, average power, peak-to-average ratio, rise time, fall time, maximum power, minimum power and the statistical data of wideband signals (up to 30 MHz video bandwidth) with 100 M samples per second continuous sampling. Backward compatibility with all Agilent 8480 power sensors and E-Series power sensors gives users additional choices for conventional average power measurements, over a wide dynamic range and frequency coverage from 9 kHz to 110 GHz.

Key Features & Specifications
