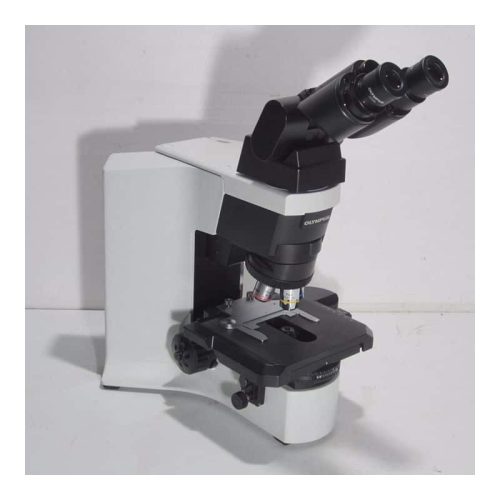

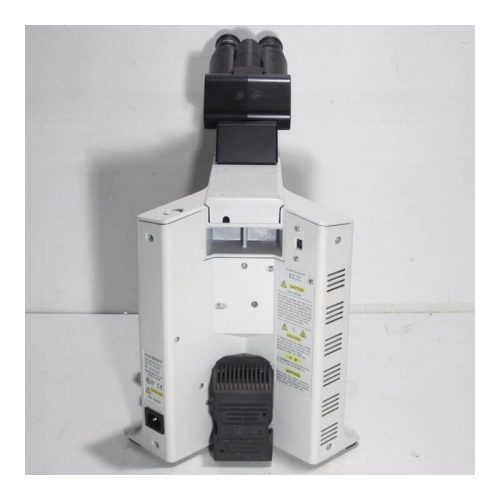

Olympus BX45 Binokularmikroskop

Olympus BX45 Binokularmikroskop come with ergonomic concerns which flexibility helps the operator maintain an upright, comfortable posture, especially beneficial for prolonged observation periods.

Models

BX45: 5-position manual nosepiece
BX45A:  2-position motorized nosepiece with hand or foot switch

Olympus BX45 Binokularmikroskop Features & Speifications:

    Olympus BX45 Microscope Body
    3-position Universal Condenser w/Swing-Out Top Lens ( This allows the use of ultra low objectives such as the 1.25x)
    Trinocular Head
    (2)WHN 10X/22mm Widefield Eyepieces
    Low Position X/Y Left Hand Mechanical Stage
    5 Position Nosepiece with slider inlet
    Plan 4x/0.10na,19mm Working Distance Objective
    Plan 10x/0.25na,10.5mm Working Distance Objective
    Plan 40x/0.65na,0.60mm Working Distance Objective
    Plan 100x/1.25na Oil,0.15mm Working Distance Objective
    6V 30Watt Halogen Light Source
    Blue Filter, Spare Bulb, Power Cord, Dust Cover
    Empire Optics Standard 1 Year Warranty

Olympus BX45 Binokularmikroskop includes:

• Olympus U-TBI-2 ergonomic binocular head
• Qty.2x Olympus WH10x/22 eyepieces
• Olympus PlanC N 4x/0.10 Infinity/-/FN22 objective
• Olympus Plan 10x/0.25 Infinity/-
• Olympus Plan 40x/0.65 Infinity/0.17
• Olympus U-SVRC right handed mechanical stage
• Olympus 0.9 3-position universal condenser for BF/DF/Ph.(comes only with the filter below, no other slides)
• Olympus IF550 green filter
• Olympus U-LS30-4 6v 30w light source

Mehr Informationen: http://www.olympusamerica.com/seg_section/seg_product_print.asp?product=664
