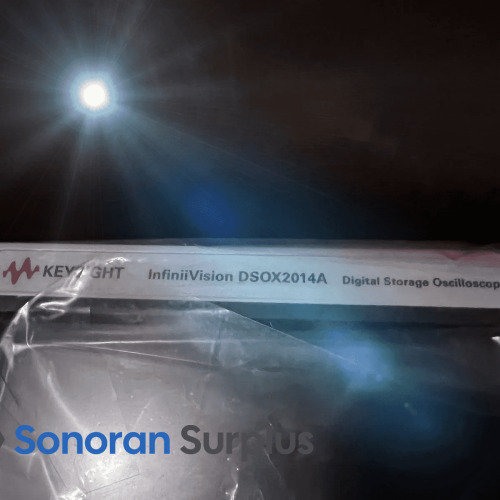

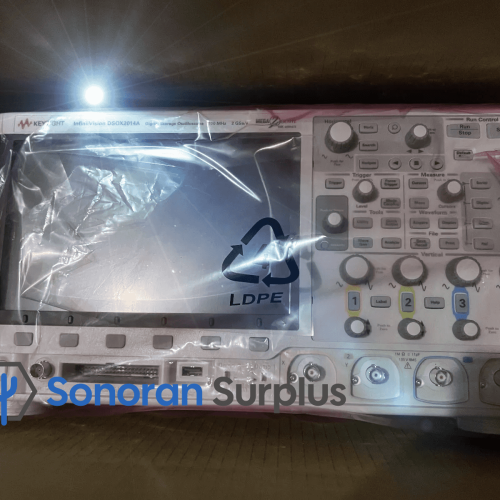

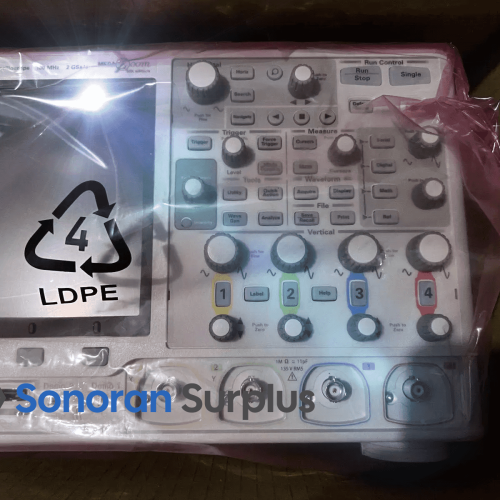

Keysight DSOX2014A Oszilloskop, 4-Kanal, 100MHz

Introducing the Keysight DSOX2014A Oscilloscope – a high-performance, digital storage oscilloscope engineered to deliver exceptional precision and speed for your most demanding measurement applications. The DSOX2014A has the tools you need. Helpful in fixing complex circuits. You can also use it to design new electronic systems.

Additionally, it is excellent for advanced research. It helps you capture, analyze, and understand signals clearly.

DSOX2014A is an InfiniiVision 2000 X-Series 4-channel, 100MHz digital signal oscilloscope. The InfiniiVision 2000 X-Series has Keysight’s MegaZoom IV smart memory technology. This technology is always on and responsive.

It offers the fastest update rate in the industry, reaching up to 200,000 waveforms per second. You can turn on measurements or add digital channels without losing performance. The 2000 X-Series also provides 23 automated measurements. These include voltage, time, and frequency. It has 14 waveform math functions too. These functions let you add, subtract, multiply, divide, and perform FFT.

Keysight DSOX2014A Key Features and Benefits

• High-Speed Signal Capture:
• Experience rapid data acquisition and high-resolution waveform visualization with the DSOX2014A’s fast sampling rates and wide bandwidth. Perfect for analyzing transient events and complex signal behaviors in real-time.
• Deep Memory Architecture:
• With extensive memory capacity, the Keysight DSOX2014A ensures you can capture long-duration waveforms without sacrificing performance. This deep memory enables detailed analysis and comprehensive data storage for thorough diagnostics.
• Intuitive User Interface:
• Navigate through measurements with a user-friendly interface designed for beginners and seasoned professionals. The oscilloscope’s streamlined controls and advanced triggering options simplify setup and operation, enhancing productivity.
• Robust Connectivity and Integration:
• Seamlessly integrate the DSOX2014A into your test systems with versatile connectivity options, including USB, LAN, and more. This flexibility ensures that data acquisition and analysis are as efficient as reliable.
• Enhanced Analysis Capabilities:
• Benefit from advanced measurement tools and automated analysis features that enable precise signal characterization and troubleshooting. The oscilloscope’s comprehensive feature set empowers you to identify and resolve issues quickly, accelerating your development cycle.

Digital Oscilloscope (100 MHz / 4 Channel)

The InfiniiVision 2000 X-Series has affordable prices that fit your budget. It also offers great performance and extra features not found in other oscilloscopes in its class. This Keysight Technologies, Inc. breakthrough technology delivers more scope for the same budget.

This series comes in different options. You can choose from 2 or 4 channels.

It also offers bandwidths of 70, 100, or 200 MHz. There is an MSO version too. This version includes the N2755 eight-channel logic probe and an accessory kit.

Fast update rate

The InfiniiVision 2000 X-Series family uses Keysight’s MegaZoom IV custom ASIC technology. It can deliver up to 200,000 waveforms every second. With this speed you can see signal detail and infrequent anomalies more often.

Do more with the power of 5 instruments in 1

Best in class oscilloscope

The InfiniiVision 2000 X-Series features Keysight’s patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry’s fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. The 2000 XSeries also provides 25 automated measurements.

These include voltage, time, and frequency. It has 18 waveform math functions too. These functions let you add, subtract, multiply, divide, and perform FFT.

Industry’s first economy-class mixed signal oscilloscope (MSO)

The 2000 X-Series is the first instrument in its class to offer an integrated logic timing analyzer. Digital content is everywhere in today’s designs.

With 8 new digital timing channels, you now have up to 12 channels. These channels allow for time-correlated triggering, acquisition, and viewing on the same instrument. Please note, this product is sold both with and without MSO hardware.

Industry’s first WaveGen built-in 20 MHz function generator with a modulation capability

The 2000 X-Series is the first in the industry. It has a built-in 20 MHz function generator.

Now, it also offers signal modulation capability. This function generator is perfect for schools or design labs with limited space and budget. To test your device, it offers sine, square, ramp, pulse, DC, and noise waveforms. No need to buy a separate function generator when you can get one integrated in your new oscilloscope.

Please note, WaveGen is activated via the optional DSOX2WAVEGEN option.

Hardware based serial protocol decode and triggering

• Embedded serial triggering and analyzing (I2C, SPI, UART/RS232/422/485)
• Automotive and industrial serial triggering and analyzing (CAN, LIN)

Keysight’s InfiniiVision Series oscilloscopes are the industry’s first to use hardware-based serial protocol decoding. Other vendors’ oscilloscopes use software post-processing techniques that slow down both waveform and decode update rate. That’s especially true when you use deep memory, which often captures multiple packetized serial bus signals. Faster decoding with hardware-based technology enhances scope usability and, more importantly, the probability of capturing infrequent serial communication errors.

After capturing a serial bus communication, you can effortlessly search and navigate based on your interests. You cannot use the digital channels and serial protocol analysis simultaneously.

Please see the accessories section of this page for several optional software packages.

Integrated digital voltmeter

The 2000 X-Series is the first in the industry. It has a built-in 3-digit voltmeter and a 5-digit frequency counter inside the oscilloscopes. The voltmeter uses the same probes as the oscilloscope channels. However, the measurements are separate from the oscilloscope’s triggering system.

This allows both the DVM and the triggered oscilloscope to take measurements using the same connection. The system always displays the voltmeter results, keeping these quick characterization measurements at your fingertips. All InfiniiVision oscilloscopes include the DVM as a standard feature.

Why Choose the Keysight DSOX2014A Oscilloscope?

The Keysight DSOX2014A Oscilloscope is more than just a measurement instrument—it’s a comprehensive solution for enhancing your testing accuracy and operational efficiency. With Keysight’s strong reputation for innovation and quality, this oscilloscope offers the performance and reliability needed for today’s electronic design and diagnostics.

Improve your testing skills and explore new possibilities with the Keysight DSOX2014A Oscilloscope. This tool combines advanced technology with unmatched accuracy.
